Beckhoff TwinCAT 3 Client Tutorial

The Beckhoff TwinCAT 3 offers you numerous features and various software function blocks for all automation tasks. The OPC UA client enables OPC UA communication with remote OPC UA servers like the server of the Franka robots FP3/FR3.

The TwinCAT software runs on a Windows system and can be tested with trial licenses. The following tutorial shows how to set up the OPC UA client in TwinCAT and how to connect to the robot. For this tutorial, TwinCAT can run on a Windows PC, so no industrial PC or PLC of Beckhoff is required.

Preconditions

Check the Beckhoff Download page to install TwinCAT 3, the OPC UA server, client, gateway and configuration correctly. Add the trial licenses for TC1200 and TF6100. An installation and licenses guide can be found in several Beckhoff tutorials.

To use the OPC UA server with TwinCAT a Franka robot’s system version greater than 5.4.0 is required. In version 5.4.0, there are some extra limitations that will be resolved in the next release. These are described in the Current Limitations chapter.

Testing the connection to the OPC UA server (optional)

To test the connection with the Control of FP3/FR3, the Sample Client feature of TwinCAT can be used. Search for “Sample Client” in the search bar of your Windows desktop and click on the application to open it. Use either opc.tcp://robot.franka.de:4840 (if connected to the base of the robot) or the IP address of the Control, for example opc.tcp://192.168.1.34:4840 (if connected to the mastercontroller). The Port should be set to :4840. Click on Get Endpoints and select Sign:Basic256Sha256:Binary.

Afterwards, you can connect to the robot Control with Username and Password as the authentification mechanism and insert the username and password that you use to access DESK. The following browser structure shall be displayed if the connection is configured correctly.

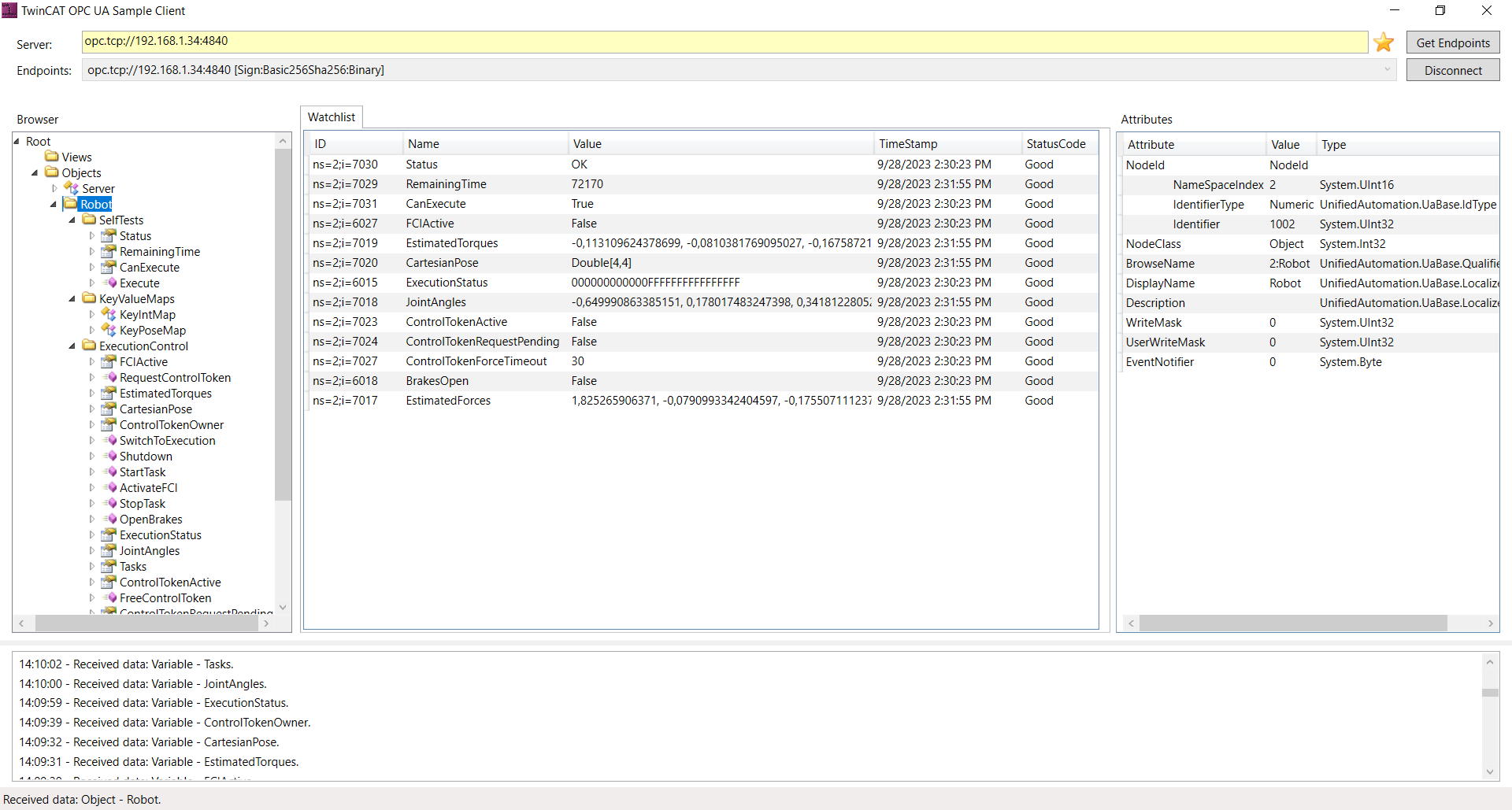

Test connection to robot server with the Sample Client function of TwinCAT

TwinCAT Sample Client

Configuring the connection to the OPC UA server

In the TwinCAT user interface, you have to start a new TwinCAT project to set up your connection to the OPC UA server of the robot control. To add a new project go to File and add a new TwinCAT XAE Project. On the left window, the project functions are shown. Under System the licenses are managed. For the OPC UA client configuration go to the I/O function block and with a right-click on Devices add a new Item. Select OPC UA - Virtual OPC UA Device. With a right-click on the added device, you can add a new client module to the project. In the Client, type opc.tcp://robot.franka.de:4840 or the IP address of the robot in the Endpoint URL field, as shown in the following picture. Then you can select the Sign:Basic endpoint and enter the credentials for your robot in the Login Configuration field.

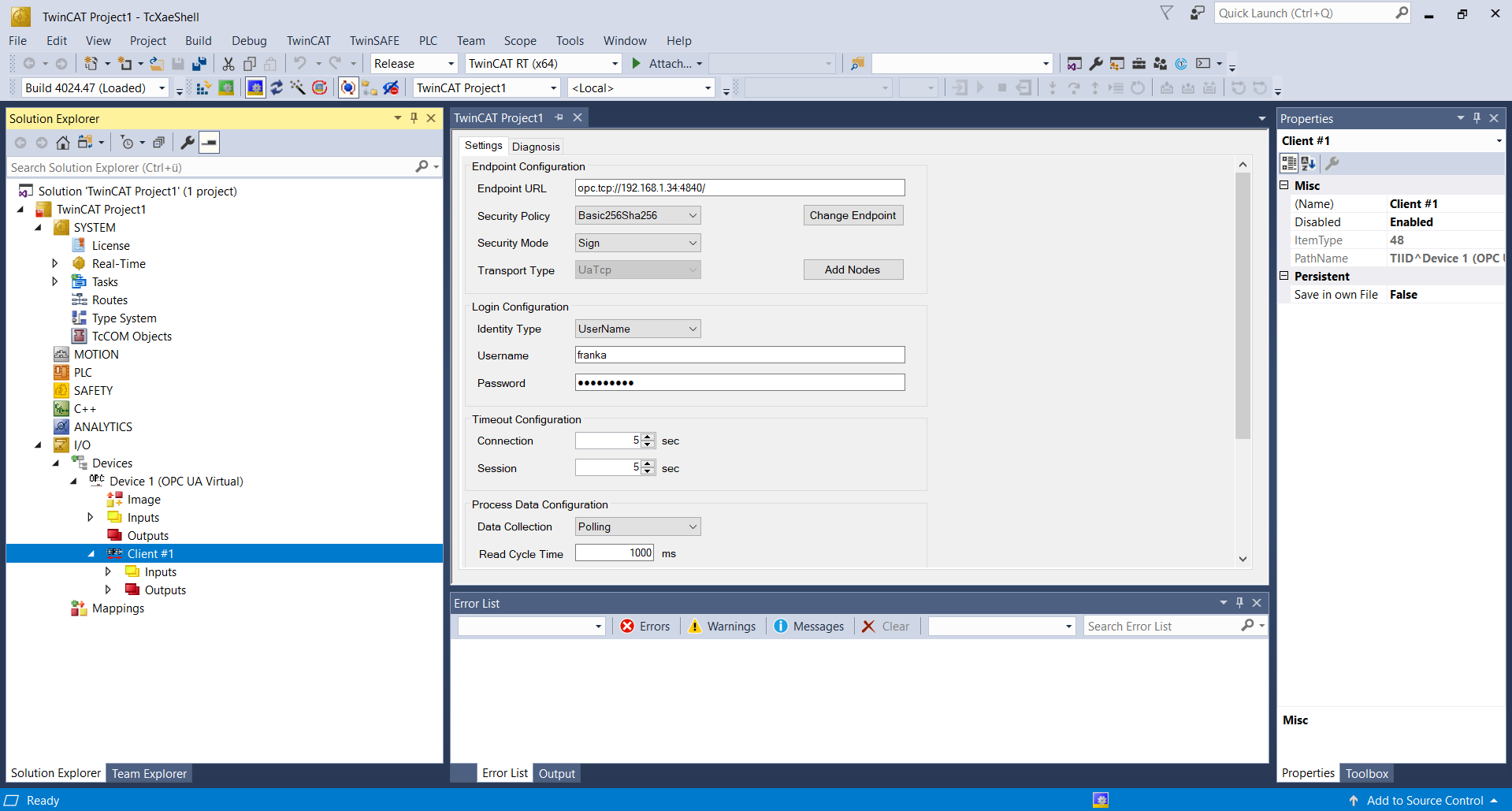

setup opc ua client

Setup OPC UA Client

Selecting variables and methods

To add OPC UA variables and methods of the robot’s OPC UA server, click on the Add Nodes button. For the first use, a BadCertificateUntrusted error occurs in a separate window. You can click trust to continue. There you can browse the available variables on the server, e.g. BrakesOpen and add them to the list by ticking them.

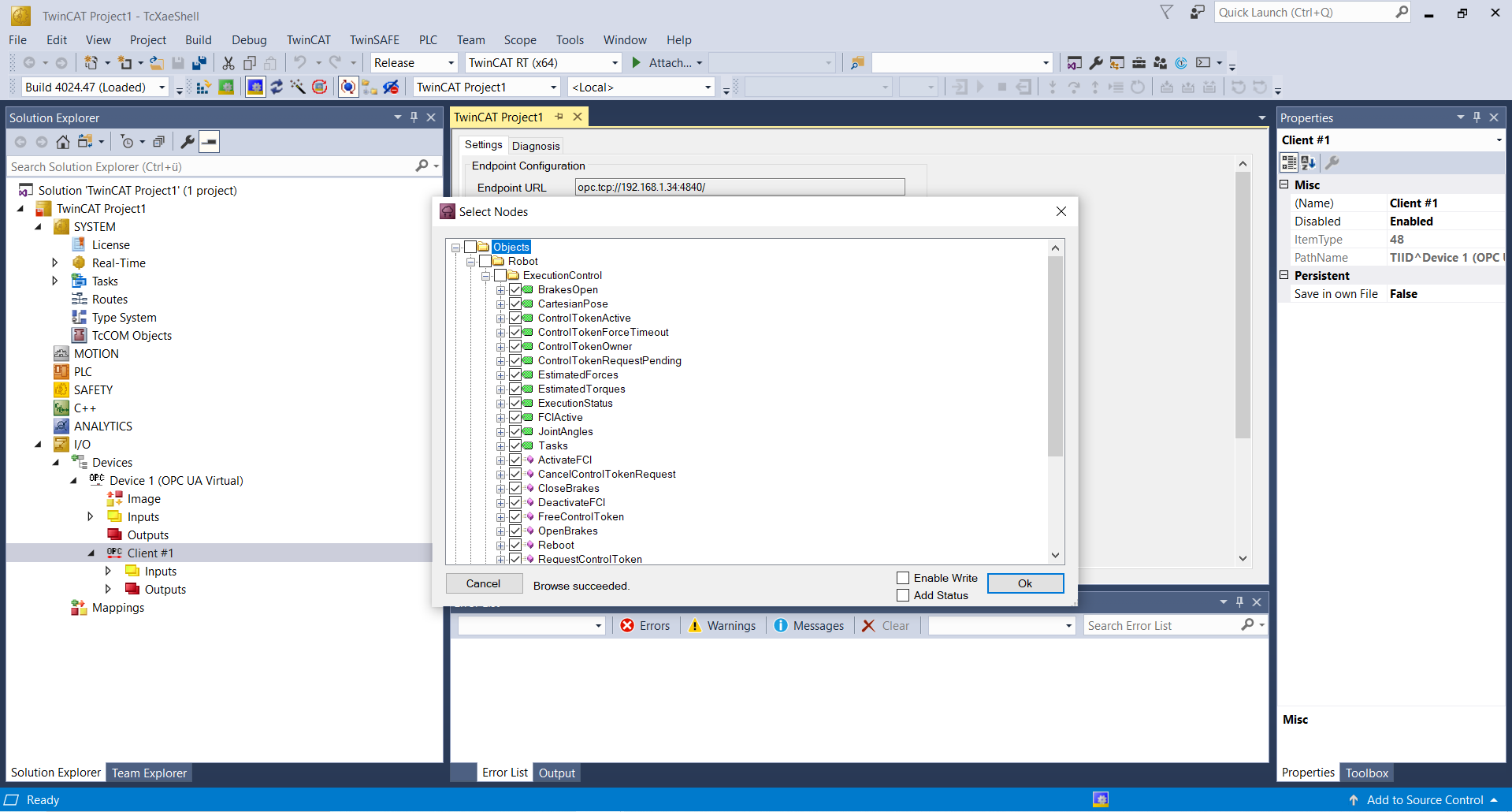

add variables and methods to client setup

Setup variables and methods

Note that there are limitations for the variables and methods depending on the robot’s system version, see Current Limitations chapter. If a variable or method is added that is currently not supported, an error window appears with the message that the insertion did not work. You can select OK and continue with the supported variables and methods.

Loading the project and starting the OPC UA connection

After all required OPC UA variables and methods have been added, the project has to be built by clicking on Build and selecting Build Solution. After a successful build, the new configuration has to be activated by the Activate Configuration button. Afterwards, TwinCAT has to be restarted by clicking “OK” in the window which shows up after the configuration activation or by the Restart TwinCAT (Run Mode) button.

activate config and restart TwinCAT configuration

Project configuration

After the restart, the TwinCAT OPC UA client is connected to the server of the Franka Robotics system. If further variables or methods are added afterward, the solution has to be built and the configuration activated again.

Read variables and execute methods

If the connection is configured correctly, the values of the OPC UA variables can be checked as shown in the following picture. For example the value of BrakesOpen is displayed as 0 when the brakes of the robot are closed. After opening the brakes in DESK the online data of the variable shall jump to 1.

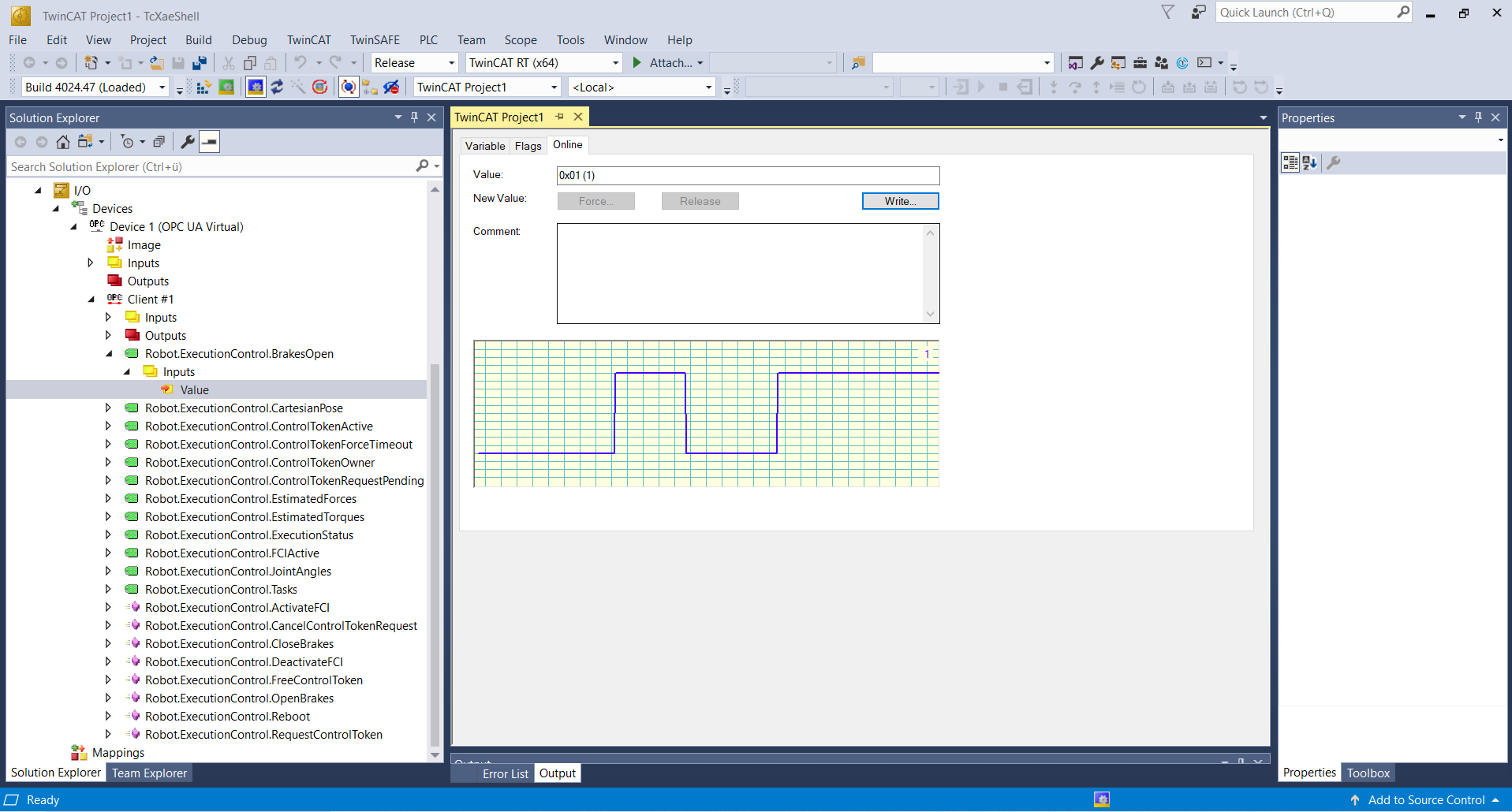

the values of the variables should now be shown in the online data

Online data of OPC UA variable

The OPC UA methods, for example RequestControlToken or OpenBrakes include inputs and outputs. The outputs are set to execute the method. In most methods the Execute output variable is set from 0 to 1 to start the execution of the method. Some methods need further output info for example a “key” to be executed. During execution, the input variable Busy is set from 0 to 1. After the execution Done is set to 1 if the execution was successful otherwise Error is set to 1 and the corresponding ErrorID is set.

Note

In order to execute the following methods, first the Control Token for the robot must be requested.
  • OpenBrakes
  • StartTask
  • SwitchToExecution
  • ActivateFCI
  • Execute of SelfTests

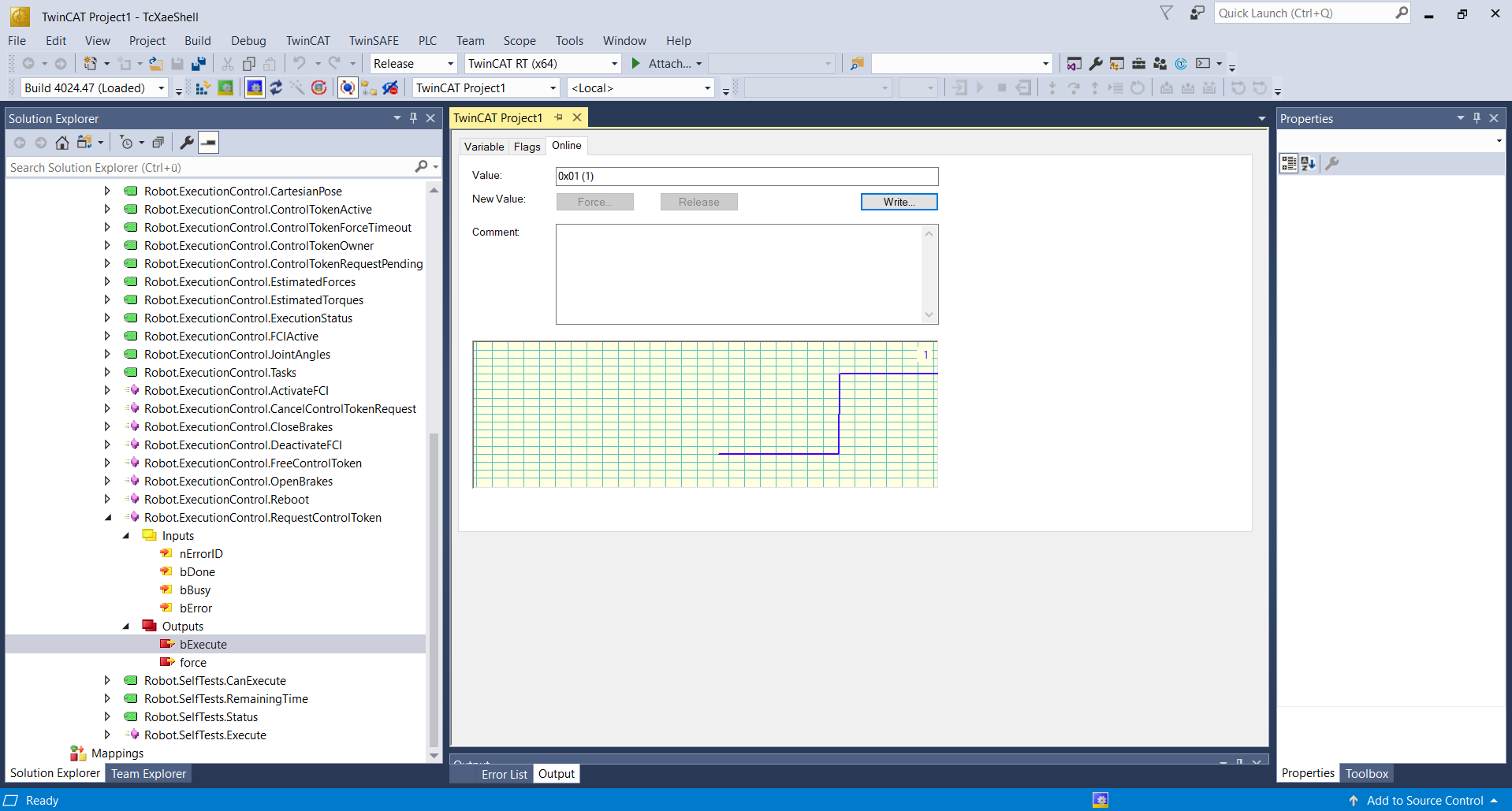

methods are conigured with inputs and outputs

Inputs and outputs of OPC UA methods

Current Limitations

Certain methods provided by the robot’s OPC UA server currently cannot be loaded by the TwinCAT 3 client. Right now this includes the variable Map and methods ReadMap, Replace of KeyPoseMap. The methods ReadKeys and ReadMap of KeyIntMap are only limited usable, because dynamic arrays are needed which are not supported by TwinCAT 3. Therefore a fixed array length of 100 is implemented. However, the method only works if the entire array is filled. To use the method dummy key value pairs have to be inserted in the array to read the keys or the key value pairs.

In the software version 5.4.0 of the Control there are some extra limitations that will be resolved in the next release. The variable Map and the methods ReadKeys and ReadMap from KeyIntMap can not be added to the TwinCAT program. Also the methods Read and ReadKeys from KeyPoseMap can not be used with this system version.
