Core model

Overview

The core model is an executable coordination model and its syntactic elements are:

  • States (state machines)

  • Links (to states)

  • Barriers

  • Ports

  • Connections

The first three syntactic elements (states, links and barriers) are nodes in core model's state machines. Ports are properties of states and connections connect different nodes with each other. States execute code, barriers are used to implement concurrency and links allow to re-use existing state machines.

States

A state is the central entity for executing code. Hence, it is the only node type that contains script code to be executed. More specifically, a state has:

  • An entry script: the script that is executed once when the state has been activated.

  • Action scripts: one or many script blocks. Each script block must contain one condition expression. Action scripts are executed while a state is active (until it is deactivated) given their condition expression evaluates to true.

  • An exit script: the script that is executed once when the state has been deactivated. If the entry script of a state has been executed, its exit script will be executed as well at some point.

States can be parameterized with parameter values. Incomplete parameter values (e.g. structs with missing fields - possibly nested) are allowed in root states at upload time to provide default parameter functionality. But they will be rejected when trying to execute them.

In addition, states can have a variable and result value. These values are available in all state scripts and condition expressions of actions and ports of the state itself. While parameters are read only the variable and result value can also be changed within scripts. Furthermore, the result value is available in the parameters of sibling states and action and port conditions of the parent state.

States contain a set of ports which control deactivation of the state and consequential transition to the next state if there is one. States can also be organized hierarchically. Each state can optionally contain (named) child nodes which can also be active as long as the outer state stays active. If the outer state is deactivated, all children are preempted.

Barriers

Barriers implement split and join semantics and are the only possibility to create parallel behavior in core model state machines as a regular state can only activate a single port. They are only activated when all incoming connections are ready and activate all states connected through outgoing connections simultaneously. It must be noted that barriers can only be connected to states and not to other barriers.

Ports

Ports control if a state should be deactivated. Ports are defined with a port name and a port condition. The port name is used to identify a port when it is used in connections. The port condition is an expression that, if it evaluates to true, causes the owning state to be deactivated and a (possibly) connected state to be activated. Ports are evaluated in the order in which they are defined within a state, i.e. the first port whose condition evaluates to true will cause the state to be deactivated and no further port conditions will be evaluated.

Connections

Connections connect states, links and barriers with each other. When connecting two states or links with each other, the connection is defined over the name of the source state or link, the name of a port in the source node and the name of the destination node (can be a state, link or barrier). Connections between barriers and states and between barriers and links are defined with only the name of the source node and the name of the destination node. Connections between two barriers are not allowed.

Semantics

Every core model state is executable. Execution denotes the evaluation of a state and referenced model elements as specified in the state's syntax. In order to execute a state, the sequence and how these model elements are to be evaluated have to be specified. Even though the execution process is primarily defined by state transitions describing the progress of a model, it also includes the coordinated invocation of specified actions, entry functions and exit functions. In the following paragraphs, execution semantics are described informally using prose and informal rules and sequences. This format can be ambiguous. Thus, a formal semantics is defined in the next section.

General

When a state is executed, the state to be executed is activated. In addition, the child state marked as first, its first child etc. are activated as well. The first child of a dynamic link, however, will only be activated after entering. Execution follows these general rules:

  • Evaluation happens top-down, conditions and thus transitions (e.g. on port activation) of 'upper' layers in the state hierarchy are considered first and may preempt evaluation of 'lower' levels. (structural priority)

  • If the entry function of a state has been executed, the state's exit function will always be executed when the state is deactivated.

  • Connections at ports are considered in sequence. The order is determined by a port priority value where smaller priorities are considered first. Port conditions are checked similar to the conditional or ||, where the first port evaluating to true wins and results possibly in a transition. All subsequent ports are then ignored even if they evaluate to true.

  • Actions are stored in a sequence and are executed in order given their action condition evaluates to true. In contrast to ports, all actions with a true condition are evaluated.

  • Links directly proxy the linked state but allow for different parameterization. Executing a link is identical to replacing the link with the linked state and using the parameter value of the linked state as default parameters. Multiple links to the same linked state do not share common execution state, in particular, they do not share parameters, variables and results.

  • Connections of states onto themselves are not supported and cannot transition.

  • Actions and connections are only evaluated once before services and/or aborted execution are considered, i.e. state machines have at least once the chance to react to something (unless their parent preempts them).

  • The core stores root states identified by their names.

  • Only root states stored in the core can be linked to.

  • No link cycles are allowed, i.e. links that contain states that contain links to the original linked state are not allowed. In other words, recursion using links is not possible.

  • Barriers cannot be connected to barriers.

State execution is separated in so called macro and micro steps. A macro step takes a snapshot of the current state of external inputs and progresses a given state and its children using micro steps until a complete state is reached, i.e. no further transitions are possible. To prevent endless loops without exiting a macro step, actions and connections can be executed/followed only once in a single macro step.

Execution status

Every node in the state machine hierarchy is always in one of four possible execution phases (also called status of the state in the following):

Inactive, Entering, Active, Exiting

where the following terms are used to denote changes of the execution phase:

  • Inactive -> activate -> Entering

  • Entering -> enter -> Active

  • Active -> deactivate -> Exiting

  • Exiting -> exit -> Inactive

Parameter evaluation

Parameters for a state are evaluated when the state is activated, i.e. when its status is set from Inactive to Entering. Parameters are not re-evaluated again while the state is Entering, Active or Exiting. It must be noted that parameter expressions are not evaluated in the child context but in the parent context. Consider the following example:

foo: child("bar").result.x

It defines how the parameter foo should be computed. Since the above expression is evaluated in the parent scope of the state for which the parameter is defined, child("bar") accesses a sibling named bar. However, if the same expression is used in an action script or action condition expression, it denotes the child named bar.

Micro step rules

Micro step evaluation is defined top-down in the state hierarchy, where 'upper' levels are considered before 'lower' levels. The first applicable micro step rule is then taken and results in a micro step, which starts again at the root of this execution's state hierarchy.

  1. Evaluate port conditions, and if one evaluates to true, deactivate the state.

  2. For all actions: if the action's condition evaluates to true and it was not yet executed (in the current macro step), execute its function body.

  3. For all connections: transition all ready connections by deactivating the port of the connection's source and activating its destination (deactivation resets all port activations).

    A port connection is ready when:

    • Source state is Inactive

    • Source port is active

    • Destination is Inactive

    • No port of destination is active

    A barrier connection is ready when:

    • Source barrier is Active

    • Destination state is Inactive

    • No port of destination is active

    Furthermore, connections into and out of barriers need to be simultaneously ready in order to transition them. This means that a barrier is only activated when all incoming connections are ready, and is only deactivated when all outgoing connections are ready.

  4. If the state is still active, do micro steps in all child states (recursively) with propagated contexts.

Examples

To further clarify the syntax and execution semantics, an example core model state machine is discussed in this section. The example consists of a graphical representation of the state machine at hand and a macro- and micro- level description of the execution semantics.

Simple composite state

This example focuses on a composite state with actions and two children . The considered issues are whether execution of the first action does precede the transition from A to B or similarly if the second action is executed before or after B's entry function.

Note

The port conditions of pA and pB are directly true.

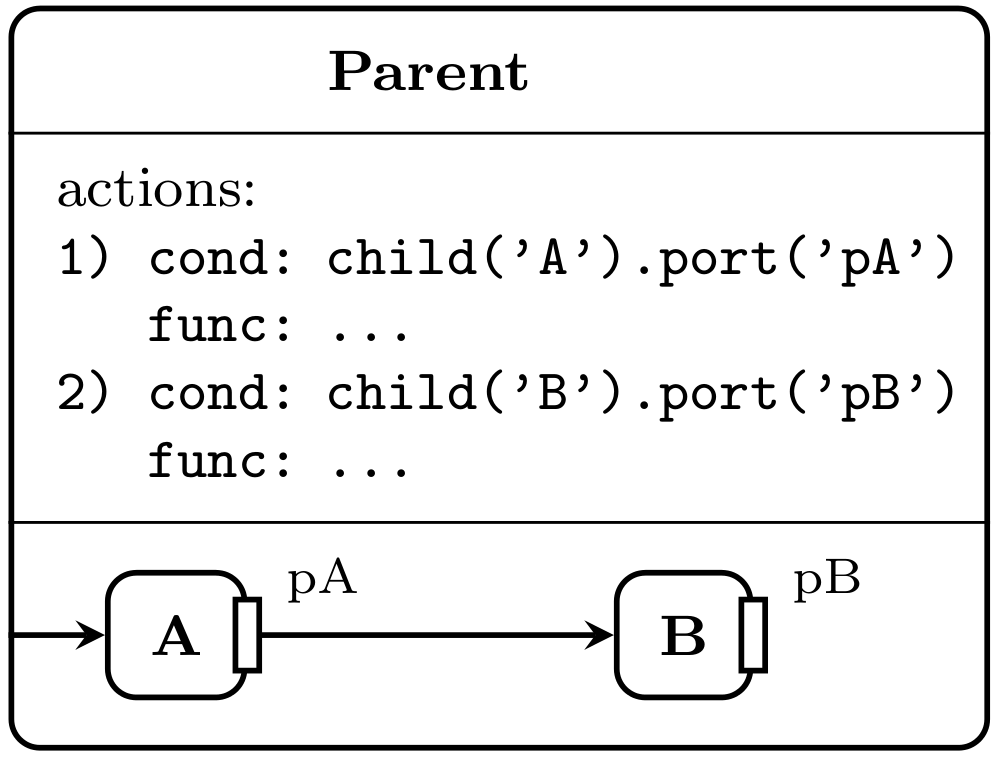

_images/example_state.png

Simple composite core model state with actions and two children

Macro

On the macro-level, the Parent state machine will remain active, along with its child state B. When transitioning into the state the following functions will get executed:

  1. Parent entry
  2. A entry
  3. action 1) of Parent
  4. A exit
  5. B entry
  6. action 2) of Parent
  7. B exit
  8. action 2) of Parent (until execution gets stopped)

Micro

The example at hand can be discussed in more detail by examining the taken micro steps. Execution gets started by activating the root node, effectively setting Parent and its first node A on status Entering. From there on, the following micro steps are taken:

  1. Enter Parent, execute its entry function, it is now Active
  2. Enter A, execute its entry function, it is now Active
  3. No port or action of Parent evaluates to true,
    evaluate ports of A -> pA triggers, A is now Exiting
  4. Action 1) of Parent gets executed because its condition is true
  5. No port or action of Parent evaluates to true,
    exit A, execute its exit function, it is now Inactive
  6. No port or action of Parent evaluates to true,
    transition into B, activate it, it is now Entering
  7. No port or action of Parent evaluates to true,
    evaluate ports of B -> pB triggers, B is now Exiting
  8. Action 2) of Parent gets executed because its condition is true
  9. No port of Parent evaluates to true, and action 2) was already executed,
    exit B, execute its exit function, it is now Inactive

No further micro steps can be taken (in this macro step) as the only condition which would evaluate to true was already executed. However, in all following macro steps, action 2) of Parent will always be executed once because the pB remains triggered - until execution gets stopped.
