Context menus

To enable the user to configure a state machine in Desk a context menu is defined, which leads the user step-by-step through the configuration. Those context menus can be implemented using HTML5, CSS3 and JavaScript. To support dynamic markup, KnockoutJS with its data binding and component system is utilized. The basics about employed mechanisms like binding handlers and the binding context can be found in the knockout documentation.

To attach a context menu to an app, the contextMenu field of the app's clientData has to be set. Any HTML markup in this clientData field will then be rendered as a context menu in Desk. Context menus are mainly navigable via the pilot-buttons on the robot, i. e. cross, circle, check and arrow-buttons in four directions. Navigation via mouse/keyboard and touch on a tablet computer is also possible.

Steps divide the process of configuring a state machine in small chunks. Steps are combined in a tree like structure. The following code-block depicts a basic step.

<step id="id"></step>

A step needs to have an [id], but more attributes can be provided (see Step API).

Note

All step ids - except for the top level steps - get postfixed with a consecutive number, e.g. pick-pose-0. This has to be taken into account when referring to a step via its id, e.g. for styling purposes.

Note

Use only classes for CSS styling. [style] attributes and [id] selectors should be avoided. This ensures that the context menu API can adapt the styling correctly to a common look (due to selector specifity).

The first level of steps - so called top level steps - are rendered as tabs of the context menu and are navigable via check and cross.

A top level step can contain further steps - so called sub steps. If a top level step is focused, its sub steps are recursively focused until the first leaf step is reached. Inside a top level step navigation is possible via the arrow-buttons, where right and down focus the next leaf step and left and up focus the previous leaf step. However, it is possible to override this behavior if needed (see Customizing pilot navigation)

When creating a context menu, we first have to define the top level steps (i.e. divide the parameters to be configured into meaningful chunks). A good strategy is to cover all the parameters which can be taught via guiding in the beginning, such as robot poses and gripper widths.

For our Tutorial app (see Pick & place app tutorial), we have to parameterize the approach and retract poses along with the gripper width for the opened and closed gripper. For picking the object, the parameters are set in a step with the id #pick-motion. A step with the id #place-motion is added for placing the object. Furthermore, the collision area and the velocity have to be parameterized. The structure of our context menu for the Tutorial app will therefore look like this:

contextMenu : @{
  <step id="pick-motion"></step>
  <step id="place-motion"></step>
  <step id="collision"></step>
  <step id="velocity"></step>
}@;

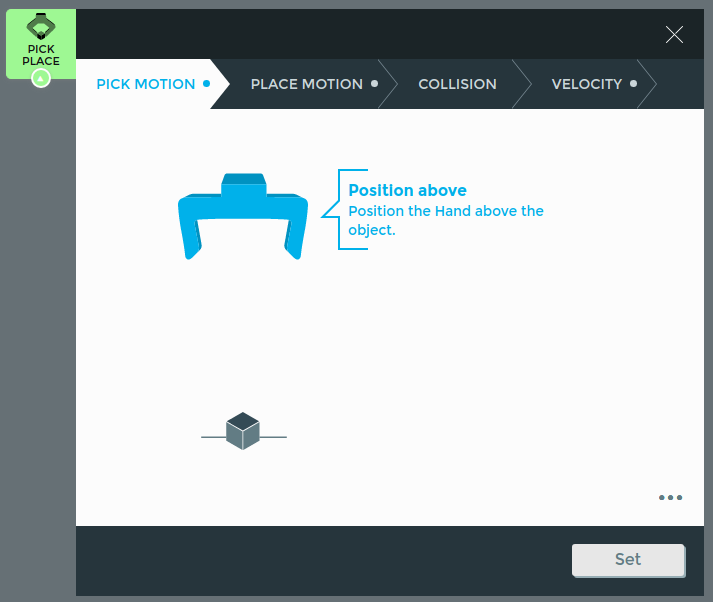

The following image depicts the context menu we want to create for our Tutorial app. The just defined top level steps are visible above the content area.

Parameter modification

Parameters of the surrounding state machine are accessible via parameter(). To access only a subtree of the parameter, an expression has to be provided. parameter('velocity') accesses e.g. the velocity parameter in the Tutorial app, parameter('pick_pose.joint_angles') the joint angles of the pick pose. Sometimes, numerical values are internally handled in a unit which is not comfortable to modify for the user. Therefore several modifiers are provided for the parameters, which enable conversion. Those modifiers are add, multiply and round. To convert e.g. a temperature from degree Celsius to degree Fahrenheit with one decimal place, one would write

parameter('temperature').add(-32).multiply(5/9).round(1)

To enable the user to modify the parameters, a variety of input components is provided. Numerical values can be modified via sliders. Choosing between two or more options is enabled via checkbox-slider, alternative-selector and drop-down-menu. One or several poses can be taught via robot-pose and robot-pose-carousel, respectively. Teaching the gripper-width isolated from the pose is obtained with gripper-control. Components are used as follows:

<component-name params="
  ...
  step: step
"/>

Each component has specific parameters, which have to be passed to the [params] attribute.

Note

The components require you to also pass the step from the binding context into the component. This is necessary to allow for pilot navigation and correct visualization on acquiring focus.

Linear slider

Allows for setting a value within a range

Parameters

• value [mandatory] (Number): the app parameter which should be modified

• max [mandatory] (Number): the maximal value

• min [default=0] (Number): the minimal value

• increment [default=1] (Number): the amount by which the value is increased or decreased by pressing the arrow buttons or dragging the slider knob

• initial [default=min] (Number): the initial value

• unit (String or Array[String]): the unit of the parameter, either as a single string, e.g. '%' or as an array of strings, e.g. ['second', 'seconds'], where the first entry is displayed if the value is 1 and the last entry otherwise

Code Example

<linear-slider params="
  value: parameter('velocity'),
  initial: 65,
  increment: 5,
  max: 100,
  unit: '%',
  step: step
"/>

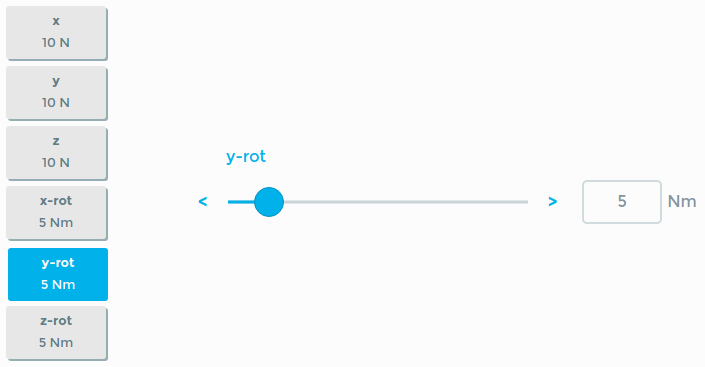

Toggle slider

Allows for modifying several numerical values at once.

Parameters

An array is passed to the toggle-slider which contains the parameters for all linear-slider inside, as listed in Linear slider, plus an additional label parameter, which is displayed in the button bar on the left.

Code Example

<toggle-slider params="
  parameters: [
    {value: parameter('safety.force_thresholds.x'), label: 'x', min: 3, max: 100, unit: 'N'},
    {value: parameter('safety.force_thresholds.y'), label: 'y', min: 3, max: 100, unit: 'N'},
    {value: parameter('safety.force_thresholds.z'), label: 'z', min: 3, max: 100, unit: 'N'},
    {value: parameter('safety.force_thresholds.x_rot'), label: 'x-rot', min: 1, max: 30, unit: 'Nm'},
    {value: parameter('safety.force_thresholds.y_rot'), label: 'y-rot', min: 1, max: 30, unit: 'Nm'},
    {value: parameter('safety.force_thresholds.z_rot'), label: 'z-rot', min: 1, max: 30, unit: 'Nm'},
  ],
  step: step
"/>

Arc slider

Allows for a circular representation of the value space.

Parameters

• value [mandatory] (Number): the app parameter which should be modified

• min [default=0] (Number): the minimal value

• max [default=Infinity] (Number): the maximal value

• increment [default=1] (Number): the amount by which the value is increased or decreased

• zeroValue [default=0] (Number): the start of a circle

• fullValue [default=360] (Number): the end of a circle

• initial [default=min] (Number): the initial value

• unit (String or Array[String]): the unit of the parameter, either as a single string, e.g. '%' or as an array of strings, e.g. ['second', 'seconds'], where the first entry is displayed if the value is 1 and the last entry otherwise

Code Example

<arc-slider params="
  value: parameter('duration'),
  initial: 20,
  fullValue: 60,
  unit: 's',
  step: step
"/>

Checkbox slider

Allows for modifying booleans.

Parameters

• value [mandatory] (Boolean): the app parameter which should be modified

• unchecked [default='OFF'] (String): a string displayed on the left side of the checkbox-slider

• checked [default='ON'] (String): a string displayed on the right side of the checkbox-slider

Code Example

<checkbox-slider params="
  value: parameter('clockwise'),
  unchecked: 'CW',
  checked: 'CCW',
  step: step
"></checkbox-slider>

Alternative selector

Allows for choosing between multiple values which are displayed as an image with a label.

Parameters

• parameter [mandatory] (String): the app parameter which should be modified

• alternatives (Array[Object]): an array of alternative objects, defined by

  • name (String): the displayed name of the alternative

  • image (String): an image displayed above the name

  • value [mandatory] (String): the value which is written into parameter when the corresponding alternative is selected

Code Example

<alternative-selector params="
  parameter: parameter('velocity_profile.plane'),
  alternatives: [
    { name: 'XY', image: plane_xy, value: 'xy' },
    { name: 'XZ', image: plane_xz, value: 'xz' },
    { name: 'YZ', image: plane_yz, value: 'yz' }
  ],
  step: step
"></alternative-selector>

Drop down menu

Allows for choosing between multiple values.

Parameters

• parameter [mandatory] (String): the app parameter which should be modified

• items [mandatory] (Array[Object]): an array of item objects, defined by

  • value [mandatory] (String): the value which is written into parameter when the corresponding item is selected

  • text (String): the displayed name of the item

• default (String): the value of the item selected by default

Code Example

<drop-down-menu params="
  parameter: parameter('plug_type'),
  default: 'hdmi',
  items: [ {value: 'USB', text: 'USB'},
           {value: 'hdmi', text: 'HDMI'},
           {value: 'VGA', text: 'VGA'},
           {value: 'dellPower', text: 'Dell Power'},
         ],
  step: step
"></drop-down-menu>

Robot pose

Allows for writing the current pose of the robot into a parameter. This component allows to simultaneously write the gripper width by passing a parameter to gripper_open or gripper_closed. Can be used to teach a single pose or multiple related poses. If multiple related poses are taught, one of the poses has to be marked as reference.

Markup passed to the component will be rendered inside the context menu to represent the pose. Refer to Visualizing robot poses for a detailed description to proper visualization.

Parameters

Note

Besides the step also the path and the componentProviderApi has to be passed from the binding context.

• pose [mandatory] (Object): the app parameter which should be modified

• gripper_open (Object): if passed an app parameter, it will be written simultaneously with the pose

• gripper_closed (Object): if passed an app parameter, it will be written simultaneously with the pose

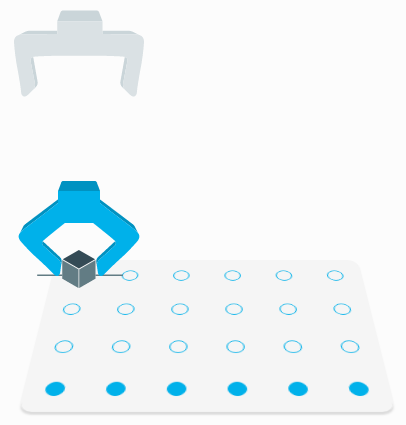

• isRelativeToFirst (Boolean): refer to Robot poses in pattern and points for a detailed description

• isBottomRightFirst (Boolean): refer to Robot poses in pattern and points for a detailed description

If more than one robot pose is used:

• reference (Boolean): set to true, if this is the pose which requires the most accuracy, e.g. if there is an approach pose and a pick pose, set true for the pick pose

• relatedPoses (Object(Object)): contains all related poses with the id of the step as key and the parameter as value

Code example

<robot-pose params="
  pose: parameter('pick_pose'),
  reference: true,
  isBottomRightFirst: false,
  relatedPoses: {
    'pick-pose': parameter('pick_pose'),
    'approach-pose': parameter('pick_approach')
  },
  step: step,
  path: path,
  componentProviderAPI: componentProviderAPI
">
  <div class="pose-content">
    ...
  </div>
</robot-pose>

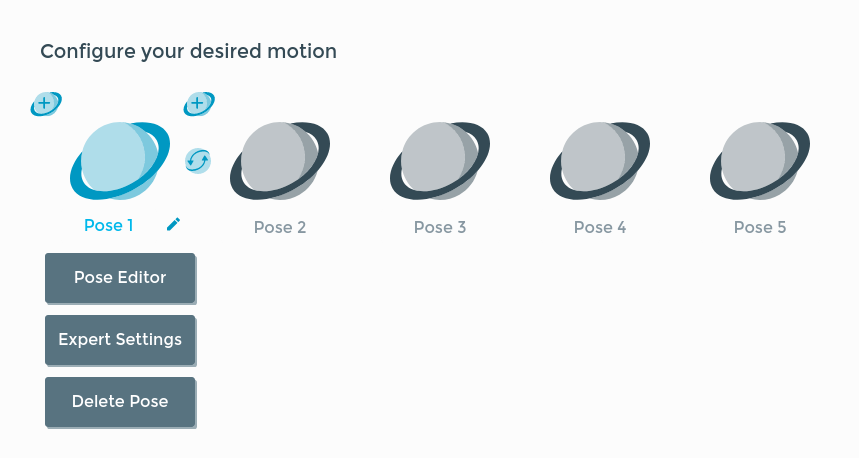

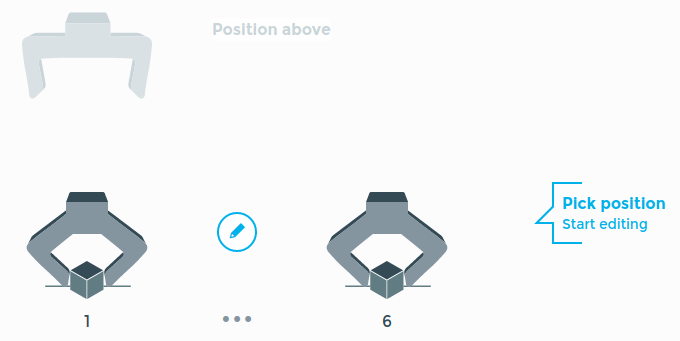

Robot pose carousel

Allows for teaching an arbitrary amount of poses.

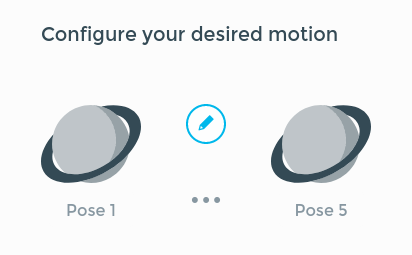

Displays the first and last pose, when not editing.

Parameters

Note

Besides the step also the path and the componentProviderApi has to be passed from the binding context.

• poses [mandatory] (Array[Object]): the app parameter which should be modified

• maximumPoses (Number): limit the amount of teachable poses

• motionParams (Array[Object]): allows to define expert settings per pose in poses

  • pose_name (String): custom name of the pose

  • use_custom_parameters (Boolean): activate the custom settings for the pose

  • custom_acceleration: (Number): custom acceleration for motion to this pose

  • custom_deceleration: (Number): custom deceleration for motion to this pose

  • custom_speed: (Number): custom speed for motion to this pose

  • point2point (Boolean): go to exact pose (no spline interpolation)

• motionType [default="cartesian"] (String): cartesian or joint motion. For "joint" the point2point and deceleration options are hidden.

• relatedPoses (Object(Object)): contains all related poses with the id of the step as key and the parameter as value

Code Example

<robot-pose-carousel params="
  poses: parameter('motion'),
  maximumPoses: 100,
  motionParams: parameter('motion_params'),
  relatedPoses: {
    points: parameter('motion'),
  },
  step: step,
  path: path,
  componentProviderAPI: componentProviderAPI
"></robot-pose-carousel>

Gripper control

Allows for teaching the gripper width independent from the pose. It displays the actual gripper width (grey indicator) and the current set width (blue indicator) and enables the user to adopt the current value.

Parameters

• width [mandatory] (Number): the app parameter which should be modified

Code Example

<gripper-control params="
  width: parameter('gripper_open_width'),
  step: step
"></gripper-control>

Visualizing robot poses

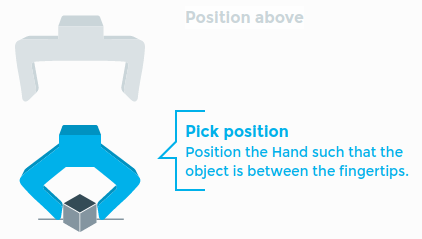

Typically, apps demand for teaching several related poses. These poses should be depicted in a scene, which represents the poses in relation to the workspace. Suitable images have to be passed to the robot-pose component, such that the current teaching situation is visualized in the context menu. Markup passed to the component will be rendered inside the context menu to represent the pose. Typically it consists of one or more wrapped up SVG images.

Note

The markup passed to the robot-pose has to be sized properly, such that other elements inside the context-menu will not be overlapped by the overflow of the element's box.

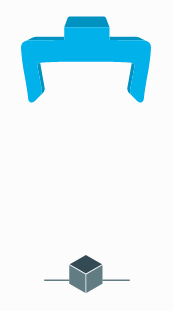

For a #pick_pose we could display the gripper grasping an object as depicted in the following image, consisting of an SVG image of the gripper and an SVG image of the object (see Guidelines for SVG images).

Both SVG images are passed to the robot-pose.

<robot-pose params="...">
  <svg><use href="object.svg#icon"></svg>
  <svg><use href="gripper_opened.svg#icon"></svg>
</robot-pose>

Positioning

There are several classes provided to arrange the passed markup, i.e.

.left-top	.center-top	.right-top
.left-center	.center-center	.right-center
.left-bottom	.center-bottom	.right-bottom

As we have two elements, we arrange them centered at the top and bottom.

<robot-pose>
  <div class="pose-content" style="width: 80px; height: 100px">
    <svg class="center-top"><use href="object.svg#icon"></svg>
    <svg class="center-bottom"><use href="gripper_opened.svg#icon"></svg>
  </div>
</robot-pose>

Notice that we added a .pose-content wrapper around the SVGs. The classes provided above add position: absolute to the elements such that they do not influence the size of the surrounding container. We therefore define width and height on the .pose-content.

Coloring and visibility

The coloring and visibility of the pose-content depends on the current focus. The content of leaf steps which prior siblings are not configured is hidden. This behavior can be customized by adding the classes .visible or .hidden to elements.

There are three color schemes

• light-gray: default for focusable but not focused steps

• dark-gray

• highlighted: default for focused steps

as depicted in the following image from left to right.

To adjust the appearance of elements inside a focused step the classes .light-gray or .dark-gray can be added. To enforce a certain color scheme no matter if the step is focused or not, the color classes can be prefixed with static-, i.e. .static-highlighted.

For the #pick-pose, we want the object to be visible all the time in a neutral color. Therefore the classes .visible as well as .static-dark-gray are added.

<robot-pose>
  <div class="pose-content">
    <svg class="center-top"><use href="object.svg#icon"></svg>
    <svg class="center-bottom static-dark-gray visible">
      <use href="gripper_opened.svg#icon">
    </svg>
  </div>
</robot-pose>

Guidelines for SVG images

To get good looking results, the SVG images have to fulfill certain prerequisites. To address the SVG image like in the example above, an [id] has to be set. It is recommended to remove all [height] or [width] attributes from the SVG image and provide only a [viewbox]. Sizing of the SVG images should take place inside the app, e.g. by adding a <style>-tag or [style]-attribute. Furthermore, inside the SVG image no colors should be set, as the color schemes above would be overwritten. If unintended outlines or lines are visible in the SVG image, it is recommended to set [stroke] as "none". If those prerequisites are fulfilled, the SVG will be displayed in the primary color of the color scheme. To add depth to the image by coloring certain areas darker, fill="currentColor" has to be set.

The depicted gripper image has for example the following structure

<svg id="icon" xmlns="http://www.w3.org/2000/svg" stroke="none" viewBox="0 0 123.65 81.91">
    <g id="gripper-front">
        <path id=".." d="..."/>
    </g>
    <g id="gripper-back" fill="currentColor">
        <path id=".." d="..."/>
        <path id=".." d="..."/>
        <path id=".." d="..."/>
        <path id=".." d="..."/>
        <path id=".." d="..."/>
    </g>
</svg>

SVGs can be used inside the context menu via

<svg><use href="bundles/tutorial/gripper.svg#icon"></use></svg>

The link to the image assumes, that it is placed within a resources folder inside the tutorial bundle. The structure would then look like the following:

.
└── bundles
  └── tutorial
      ├── migrations
      ├── resources
      │  ├── logo.svg
      │  ├── gripper_holding.svg
      │  ├── gripper_opened.svg
      │  └── object.svg
      ├── sources
      │  └── Tutorial.lf
      └── manifest.json

Important

The <svg> tag within the SVG file requires an [id] attribute to be addressable. This [id] then has to be appended to the URL with a #, like in the example above. For app icons this [id] needs to be icon.

Positioning and spacing of steps

Finally, the steps themselves have to be arranged to depict the workspace. The positioning via the CSS Flexbox Layout can be achieved by using

• .flex-column

• .flex-row

either on the steps or surrounding containers. Those classes can be extended by

• .center-content-x

• .center-content-y

to achieve vertical and horizontal alignment respectively.

Another convenient way for positioning is the CSS Grid Layout, as it enables two-dimensional arrangement of the content.

A convenient way to modify the spacing via margins is by using the classes

• .margin-top-

• .margin-bottom-

• .margin-left-

• .margin-top-

postfixed with the margin in pixels. The classes are available for margins from 20 to 300 pixels in 20 pixel increments, e.g. .margin-top-40 or .margin-left-280.

To get an example have a look at the code of the Tutorial app. There we add .flex-column to the #pick-motion step, which contains two containers with the #pick-approach and #approach-width and the #pick-pose and #pick-width respectively. Both containers have the .flex-row class. As now all components are close together, we add .margin-bottom-60 to the first container and .margin-right-60 to the #pick-approach and #pick-pose steps.

The #pick-motion step looks now like this.

<step id="pick-motion" name="Pick Motion" class="flex-column">
  <div class="flex-row margin-bottom-60">
    <step id="pick-approach" class="margin-right-60">
      <robot-pose params="...">
        <div class="pose-content">
          <svg class="center-top"><use href="gripper_opened.svg#icon"></use></svg>
        </div>
      </robot-pose>
    </step>
    <step id="approach-width">
      <gripper-control params="..."></gripper-control>
    </step>
  </div>
  <div class="flex-row">
    <step id="pick-pose" class="margin-right-60">
      <robot-pose params="...">
        <div class="pose-content">
          <svg class="center-bottom static-dark-gray visible">
            <use href="object.svg#icon"></use>
          </svg>
          <svg class="center-top">
            <use href="gripper_holding.svg#icon"></use>
          </svg>
        </div>
      </robot-pose>
    </step>
    <step id="pick-width">
        <gripper-control params="..."></gripper-control>
    </step>
  </div>
</step>

If the context menu of the Tutorial app is opened for the first time, the following scene is visible to the user

After teaching the approach pose and approach width, the scene changes to the following image.

Providing descriptions

Providing only images is in most cases not sufficient to guide the user through the teaching process. Therefore it is possible to add a [name] and a [label] attribute to steps, which provide textual information to the user. The name shortly titles the step, whereas the label provides one or more sentences to describe the step in more detail. The names of the top level steps are visible all the time as the titles of the tabs at the top of the context menu.

robot-pose, robot-pose-carousel and gripper-control provide step-labels, which display title and label of the surrounding step. If a step is focusable - i.e. all previous steps are configured - the content of the step and its name are visible. If focused, the name as well as the label are visible next to the step as depicted in the following image.

Step labels can also be added manually by placing <step-label params="step: step" /> inside a step. Step labels appear by default on the right side of the step. By adding the class .left to the step-label or .left-step-label to the step, the step-label will be moved to the left side.

We therefore extend our #motion step with names and labels.

<step id="pick-motion" name="Pick Motion">
  <step
    id="pick-approach"
    name="Position above"
    label="Position the Hand above the object."
  >...</step>
  <step
    id="approach-width"
    name="Open fingers"
    label="Set the width between the fingertips such that it is larger than the object at its picking points."
  >...</step>
  <step
    id="pick-pose"
    name="Pick position"
    label="Position the Hand such that the object is between the fingertips."
  >...</step>
  <step
    id="pick-width"
    name="Close fingers"
    label="Close the fingers such that the object is firmly grasped."
  >...</step>
</step>

Furthermore it is possible to add descriptions via the html elements h1, h2 and p or label. In our example we add <h2/> with the step label to add a description to the linear-sliders in the #collision and #velocity step.

<step
  id="collision"
  name="Collision Area"
  class="flex-column"
  label="Set the collision area in which a collision should be detected."
>
  <h2 data-bind="text: step.label"/>
  <linear-slider params="..."/>
</step>
<step
  id="velocity"
  name="Velocity"
  class="flex-column"
  label="Set the velocity of the robot's motion."
>
  <h2 data-bind="text: step.label"/>
  <linear-slider params="..."/>
</step>

The resulting #velocity step can be seen in the following image

Note

The complete context menu for the Tutorial app example can be viewed here. For a full app creation tutorial check out the section Pick & place app tutorial.

Advanced Topics

Step API

Conditional steps

Sometimes, steps should only be available, if certain prerequisites are fulfilled. This can be obtained by setting the [if] attribute of the step, e.g.

contextMenu : @{
  <step id="..." if="parameter('show_step')() == true">...</step>
}@;

Initial

To specify a different entry point when focusing a step, add [initial] to one of its children:

<step id="..." initial></step>

Only navigate

If a previous step is done, the next sub step will automatically be focused. To remove a step from the next considered steps, add [only-navigate] to the specific step:

<step id="..." only-navigate></step>

The step will still be focusable by directly navigating using left or right, or by clicking on it.

Configured

Steps which need no more intervention by the user are configured. A step can only be configured if all of its children are configured as well. Not yet configured top level steps are marked in the context menu. In general, the configured handling is enforced by the components, which check if the passed parameter is still nil. The configured handling can be customized by adding the [configured] attribute to the step.

<step id="..." configured="parameter('configured')() == true" ></step>

Light-weight viewmodels

The light-weight viewmodel mechanism can be used to inject a custom viewmodel into a step. This allows to hold values in lexical scope, provide a cleaner interface to the markup / binding handlers while retaining access on the full binding context (with which the <viewmodel> content is invoked):

<step id="repetitions" label="Repetitions" configured="parameter('times')">
  <viewmodel>
    var ko = require("knockout")
    var value = parameter('times')

    var element = $element
    element.addEventListener("blur", function() {
      value(element.value)
    })

    return ko.pureComputed(function() {
      return value() + " times"
    })
  </viewmodel>
  <input type="number" data-bind="
    value: viewmodel,
    attr: { min: 1, max: 10, step: 1 }
  " />
  <div data-bind="text: viewmodel">
</step>

Custom components

Creating components

Components are declared using <component> tags in the components clientData entry in the app.

A component has one or more names and consists of two parts: <template>, which includes the component markup, and <script>, which includes the viewmodel javascript code. The contents of these tags can be either inlined or sourced from another file, e.g.:

components : @{
  <component name="custom-component also-custom-component">
    <template src="custom_component.html"></template>
    <script src="custom_component.js"></script>
  </component>
}@

This markup declares a new component available as custom-component and also-custom-component. All component names are required to contain a dash.

Global components

Components can also be made available globally by specifying them in the globalComponents field of the manifest, e.g.:

{
  "name": "my_bundle",
  "version": "1.0",
  "dependencies": [],
  "globalComponents": [
    "<component name=\"custom-component also-custom-component\"><template src=\"custom_component.html\"></template><script src=\"custom_component.js\"></script></component>"
  ]
}

Global components are available to all apps and groups.

Template

Whenever possible, it is recommended to use the introduced classes in Positioning and spacing of steps. However, templates can contain <style> tags to style the template elements accordingly. It is recommended to use the name of the components inside the css rules to avoid leaking, as depicted in the following code-block.

<style>
  custom-component also-custom-component input {
    width: 50px;
  }
</style>

To be able to style the component dependent on the current focus, the step class .focused can be used, as depicted in the following code-block.

<style>
  step.focused custom-component {
    border-width: 2px;
  }
</style>

There are a number of variables for colors which get replaced to pre-defined values. It is recommended to use these over hardcoded values to have consistent styling. Those are

• $error.color

• $warning.color

• $circle.color

• $check.color

• $cross.color

Similar to the highlighted color scheme

• $focused.color

• $focusedAccent.color

Similar to the light-gray color scheme

• $inactive.color

• $inactiveAccent.color

• $inactiveSubtle.color

Similar to the dark-gray color scheme

• $active.color

• $activeAccent.color

• $activeSubtle.color

The following example template contains the HTML5 <input> element and a button bound to the component's click method.

components : @{
  <component name="my-custom-component">
    <template>
      <style>
        custom-component input {
          width: 50px;
        }
        step.focused custom-component {
          border-color: $focused.color;
        }
      </style>
      <input type="number" data-bind="
        value: value,
        attr: { min: min, max: max, step: increment }"/>
      <div data-bind="click: click">OK</div>
    </template>
    <script>
      return {
        click: () => {console.log('ok clicked!')},
        value: 41,
        increment: 1,
      }
    </script>
  </component>
}@

Viewmodel

The <viewmodel> tag is loaded as CommonJS module with a variety of requirable modules. However, the code is loaded without context, so everything has to be required. The declared exports or returned value is used as constructor for the component viewmodel, so make sure you export or return a function.

Requirable modules are

• lodash 3.10.1

• jquery 3.4.1

• knockout 3.4.2

• matrix

• component_util

The viewmodel constructor is provided with (as in Knockout components) the passed params and additional arguments:

• api - The Desk API to play sound or retrieve robot poses

• source - The element API for the skill/group which declared the component. This is used to provide components which not only parameterize the instantiating but also the providing skill.

• element - A reference to the DOM element holding the rendered template.

The instance created by invoking the constructor with new will then be available as $data and $component in the binding context.

var _ = require("lodash")

var NumberInput = module.exports = function(params, api, source, element) {

  this.value = params.value
  this.min = params.min || 0
  this.max = params.max
  this.increment = params.increment || 1

  this.click = function() {
    params.step.done()
  }
}

Matrix

The module matrix provides several matrix utility functions for transformation matrices, poses and trajectories. Transformation matrices are stored in column-major order in arrays of length 16. Poses are objects containing the transformation matrix and the joint angles as an array of length 7, i.e. { pose: Array[16], joint_angles: Array[7] }. Trajectories are arrays containing poses.

• Matrix.transpose(m): transposes a matrix

  • arguments: m (Array) the matrix to process

  • returns: (Array) the transposed matrix

• Matrix.invert(m): inverts a matrix

  • arguments: m (Array) the matrix to process

  • returns: (Array) the inverted matrix

• Matrix.dot(m1, m2): multiplies two matrices

  • arguments: m1 (Array), m2 (Array) the matrices to process

  • returns: (Array) the result of the multiplication

• Matrix.identity(): returns a new identity matrix

  • returns: (Array) identity matrix

• Matrix.translate(m, x, y, z): translates the transformation matrix

  • arguments: m (Array) the transformation matrix, x (Number), y (Number), z (Number) translation vector

  • returns: (Array) the result of the translation

• Matrix.moveTrajectory(traj, a, b): moves a trajectory from a to b

  • arguments: traj (Array(Objects)) the trajectory to be moved, a (Object), b (Object) the start (a) and end (b) pose as

  • returns: (Array(Objects)) the moved trajectory

• Matrix.movePose(pose, a, b): moves a pose from a to b

  • arguments: pose (Object) the pose to be moved, a (Object), b (Object) the start (a) and end (b) pose as

  • returns: (Object) the moved trajectory

• Matrix.matricesEqual(a, b, [p]): checks if two matrices are equal given a certain precision

  • arguments: a (Array), b (Array) the matrices to be compared, p [optional] (Number) the precision

  • returns: (Boolean) returns true if matrices are equivalent

• Matrix.trajectoriesEqual(a, b, [p]): checks if two trajectories are equal given a certain precision

  • arguments: a (Array(Object)), b (Array(Object)) the trajectories to be compared, p [optional] (Number) the precision

  • returns: (Boolean) returns true if trajectories are equivalent

Component util

The module component_util provides several utility functions.

• Util.or([args]): returns the first argument which is not undefined or null

  • arguments: args (...) the arguments to check for undefined and null

  • returns: (...) the first arguments which is not undefined or null

• Util.clamp(value, min, max): clamps value within the lower and upper bounds

  • arguments: value (Number) the value to clamp, min (Number) the lower bound, max (Number) the upper bound

  • returns: (Number) the clamped value

• Util.pluralize(unit, value): applies correct pluralization to unit, e.g. "second" instead of "seconds" if the value is 1

  • arguments: unit (String or Array(String)) the unit(s), value (Number) the current value

  • returns: (String) unit with correct number

Custom groups

You can create your own groups, similar to points and grid. A .lf file is recognized as a group when it defines type: "group" within the clientData.

The group can modify the behavior of child apps in many ways. One is by registering their own components like robot-pose and thus overwriting the default robot-pose:

components: @{
  <component name="robot-pose">
    <template src="custom_group/robot_pose.html"></template>
    <script src="custom_group/robot_pose.js"></script>
  </component>
}@;

The icons displayed on the left and right can be defined by adding two more svg elements to the image clientData with the ids open and close.

clientData {
  ...
  image: @{
    <svg id="icon"><use href="bundles/custom_group/logo.svg#icon"></use></svg>
    <svg id="open"><use href="bundles/custom_group/open.svg#open"></use></svg>
    <svg id="close"><use href="bundles/custom_group/close.svg#close"></use></svg>
  }@;
}

Reacting to changes of observable values using ko.pureComputed

Many values provided by the viewmodel apis implement an observer pattern to always provide up-to-date values to viewmodels. For instance, it is possible to check if the current step is focused by calling params.step.focused:

const MyViewmodel = function(params, api, source, element) {
  console.log(params.step.focused()) // will output if the step is focused at
                                     // the moment of invocation
}

To always display current data to users, it is possible to wrap observable values in a knockout ko.pureComputed. A ko.pureComputed will keep track whether other observers are subscribed to its value, update if its dependencies change and it is being observed, and will dispose of its own subscriptions to observables automatically on teardown of the viewmodel. This allows for a number of patterns:

const ko = require('knockout');

const MyViewmodel = module.exports = function(params, api, source, element) {
  this.isStepFocused = ko.pureComputed( () => {
    // simply return the observable value
    return params.step.focused();
  });
  this.isStepFocusedAndConfigured = ko.pureComputed( () => {
    // combine the value of multiple observables
    return params.step.focused() && params.step.configured();
  });
  this.gripperClosedLabel = ko.pureComputed( () => {
    // transform an observable value to another type
    return api.relativeGripperWidth() === 0
      ? "The gripper is closed."
      : "The gripper is not closed!";
  });
}

There values can then be used in the HTML markup of the viewmodel:

<!-- ko if: isStepFocused >
  <span>The step is focused</span>
<!-- /ko >
<!-- ko if: isStepFocusedAndConfigured >
  <span>The step is focused and configured</span>
<!-- /ko >
<span data-bind="text: gripperClosedLabel"></span>

Usage of subscribe and ko.computed with observable values

It is possible to observe for changes in an observable by invoking the knockout subscribe method. This is especially interesting if it is necessary to run side-effects as a reaction to a change in an observable value. The subscribe method will invoke the provided callback as soon as the observed value changes, which allows running side effects as a result of value changes.

However, using the subscribe function can cause memory leaks and, when improperly used in context menu viewmodels, loss of data, if the subscriptions are not disposed of properly. When using subscribe, always invoke the dispose function on the returned object when disposing the viewmodel:

const MyViewmodel = module.exports = function(params, api, source, element) {

  // creating an empty list to store all created subscriptions
  this.subs = []

  // adding return values of ``subscribe'' to the list of subscriptions
  this.subs.push(
    params.step.focused.subscribe(function (focused) {
      if (focused) console.log('My step is currently focused!')
    }),
    params.step.configured.subscribe(function (configured) {
      if (configured) console.log('My step is currently configured!')
    })
  )
}

// the dispose function is called when the viewmodel is unloaded
MyViewmodel.prototype.dispose = function() {
  // dispose of all registered subscriptions
  this.subs.forEach( (subscription) => subscription.dispose() )
}

A similar pattern is possible and should be followed in lightweight viewmodels:

<viewmodel>
  // creating an observable
  const myObservable = ko.observable('some value');
  // an array to store all subscriptions
  const subs = []

  // each time when creating a subscription, add it to the array of subscriptions
  subs.push(myObservable.subscribe(console.log))

  return {
    dispose: function () {
      // dispose each subscription when disposing the viewmodel
      subs.forEach((subscription) => { subscription.dispose() })
    }
  };
</viewmodel>

The same principle applies to ko.computed values, and they should be disposed in the same way.

Use of the subscribe and ko.computed functions is heavily discouraged. If you wish to display values in your viewmodel template that are based on other observable values, prefer using a knockout ko.pureComputed instead (check the corresponding section for details).

Interaction

Customizing pilot navigation

The context menus are usually directly interacted with from the pilot interface mounted on the robot. Sometimes the provided default implementation of the pilot navigation is not suitable. It can be customized by passing an object to the step.update() function as depicted below

step.update(function() {
  var pilot = {
    circle: { label: "...", click: function() { ... } },
    check: { label: "...", click: step.done }
  }
  return {
    pilot: pilot
  }
})

For every button on the pilot interface, a configuration can be passed to step.pilot, i.e.

{
  check: {...},
  circle: {...},
  cross: {...},
  down: {...},
  left: {...},
  right: {...},
  up: {...}
}

If an entry is specified, it has to be an object. An empty object {} means the button shall be disabled explicitly. To use the button, a click handler needs to be specified. Also buttons can be labeled and highlighted:

• click (Function) [mandatory]: called when the button is pressed

• label (String): label of the button in the context menu

• highlight (Boolean): button on the pilot will be colored

The values of all currently focused steps plus the context-menu's default semantics and colors (with lowest priority) are merged together to form the actually available pilot buttons with their click handlers, labels and highlighting.

Interaction via mouse

Interaction with components is only possible, if the surrounding step is focused. To avoid the necessity to click twice on an element to first focus the step and afterwards actually click the element, the class .clickable can be added. Furthermore the class .pointer is provided, to change the cursor to a pointer when hovering an element with named class.

Robot poses in pattern and points

Examples for groups could be points and pattern groups. They enable the execution of multiple similar robot movements by teaching a reference pose multiple times. To use an app within the groups, one of the poses has to be marked as the reference, by setting the reference parameter to true on the corresponding component. Non-reference poses listed in the relatedPoses parameter have to be taught only once and are then shifted according to the reference. By default, poses are relative to the reference pose which is taught first. However, if the parameter isRelativeToFirst is set to false, they are relative to the reference pose which is taught last. It is recommended to set isRelativeToFirst to false for poses, which are taught after the reference pose(s).

Points

Robot poses inside an app inside a points group will be displayed in a list similar to the robot-pose-carousel as depicted in the following image.

For the positioning of the steps inside the context menu it has to be taken into account to which pose (the first or the last) the non-reference poses are relative. In the image above, the Position above is relative to the first taught reference pose.

Pattern

In a pattern group, the dimensions of a pattern and three corners are taught. The robot-pose will be replaced with a grid-widget, as depicted in the following image.

The markup passed to the robot-pose has to be positioned to fit the corners, i.e. the center of the image(s) has to be specified. In our example, we add a [top] and [left] attribute to the .pose-content.

<robot-pose params="reference: true, ... ">
  <div class="pose-content" top="95px" left="65px">
    ...
  </div>
</robot-pose>

By default, the corners will be taught in the following order

• top-left

• top-right

• bottom-right

By setting the parameter isBottomRightFirst to true, the order will change to

• bottom-right

• bottom-left

• top-left
